comma: for microbial methylation analysis • comma

comma (comma: for microbial methylation analysis) is an R package for genome-wide analysis of bacterial DNA methylation from Oxford Nanopore sequencing data. It accepts output from modkit, Dorado, and Megalodon, supports 6mA, 5mC, and 4mC in a single unified container, and covers the full analysis workflow from raw files through quality control, site annotation, differential methylation testing, and publication-quality visualization.

Features

commaData S4 class — extends SummarizedExperiment; stores beta values, coverage, sample metadata, genome info, and annotations together.
Three parsers — modkit pileup BED (primary), Dorado BAM (full MM/ML tag decoding), and Megalodon (legacy).
Vectorized annotation via GenomicRanges::findOverlaps(); three modes: overlap, proximity, and metagene (normalized position within feature bodies).
Differential methylation — quasibinomial GLM per site with a DESeq2-style interface (diffMethyl() → results() → filterResults()).
Seven plot_*() functions — coverage QC, beta distributions, PCA, genome tracks, metagene profiles, volcano plots, and heatmaps; all return ggplot objects for further customization.
Any bacterial genome — no organism-specific values are hardcoded anywhere.
Multi-modification-type — 6mA, 5mC, and 4mC coexist in one object; every function accepts a mod_type argument to work with individual types.

Installation

# Development version from GitHub:
devtools::install_github("carl-stone/CoMMA")
#> ── R CMD build ─────────────────────────────────────────────────────────────────
#> * checking for file ‘/private/var/folders/3k/ldfp2j0n0f14b16ghvbmqcp00000gn/T/RtmpaBvRfl/remotesec493f429421/carl-stone-CoMMA-b5db7c0/DESCRIPTION’ ... OK
#> * preparing ‘comma’:
#> * checking DESCRIPTION meta-information ... OK
#> * checking for LF line-endings in source and make files and shell scripts
#> * checking for empty or unneeded directories
#> Removed empty directory ‘comma/.claude/worktrees/cranky-dhawan’
#> Removed empty directory ‘comma/.claude/worktrees’
#> Removed empty directory ‘comma/.claude’
#> * looking to see if a ‘data/datalist’ file should be added
#> * building ‘comma_0.6.0.tar.gz’

# Bioconductor (upcoming v1.0.0):
# BiocManager::install("comma")

The `commaData` Object

commaData extends SummarizedExperiment and is constructed from per-sample methylation files:

library(comma)

# Named vector: sample_name → path to modkit pileup BED
files <- c(
  ctrl_1  = "path/to/ctrl_rep1.bed",
  ctrl_2  = "path/to/ctrl_rep2.bed",
  treat_1 = "path/to/treat_rep1.bed",
  treat_2 = "path/to/treat_rep2.bed"
)

col_data <- data.frame(
  sample_name = c("ctrl_1",    "ctrl_2",    "treat_1",    "treat_2"),
  condition   = c("control",   "control",   "treatment", "treatment"),
  replicate   = c(1L,          2L,          1L,          2L)
)

obj <- commaData(
  files        = files,
  colData      = col_data,
  genome       = "path/to/genome.fa",   # FASTA, BSgenome, or named integer vector
  annotation   = "path/to/genes.gff3",  # GFF3 or BED (optional)
  motif        = "GATC",                # regex motif (optional)
  min_coverage = 5L,
  caller       = "modkit"               # "modkit", "dorado", or "megalodon"
)

A built-in synthetic dataset (300 sites, 3 samples, 100 kb genome) is included for testing and demonstrations:

library(comma)
data(comma_example_data)
comma_example_data
#> class: commaData
#> sites: 300 | samples: 6
#> mod types: 5mC, 6mA
#> conditions: control, treatment
#> genome: 1 chromosome (100,000 bp total)
#> annotation: 5 features
#> motif sites: none

Workflow

Step 1 — Quality Control

methylomeSummary() returns per-sample distribution statistics:

ms <- methylomeSummary(comma_example_data)
ms[, c("sample_name", "condition", "mean_beta", "median_beta",
       "frac_methylated", "n_covered")]
#>   sample_name condition mean_beta median_beta frac_methylated n_covered
#> 1      ctrl_1   control 0.8678843   0.8881436       0.9900000       300
#> 2      ctrl_2   control 0.8728354   0.8951648       0.9966667       300
#> 3      ctrl_3   control 0.8781476   0.8966108       1.0000000       300
#> 4     treat_1 treatment 0.8135452   0.8829561       0.9166667       300
#> 5     treat_2 treatment 0.8136529   0.8867238       0.9000000       300
#> 6     treat_3 treatment 0.8004998   0.8694701       0.9066667       300

plot_coverage() shows the sequencing depth distribution per sample:

plot_coverage(comma_example_data)

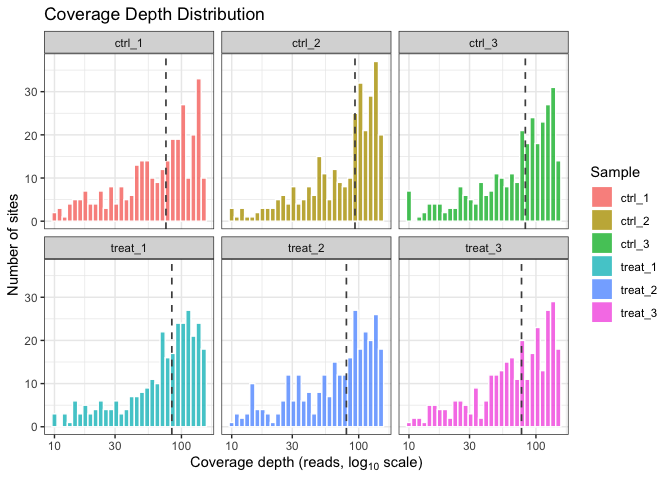

Coverage depth distribution per sample.

plot_methylation_distribution() plots the density of beta values, faceted by modification type. Bacterial methylomes often show a bimodal distribution (sites are either fully methylated or unmethylated):

plot_methylation_distribution(comma_example_data)

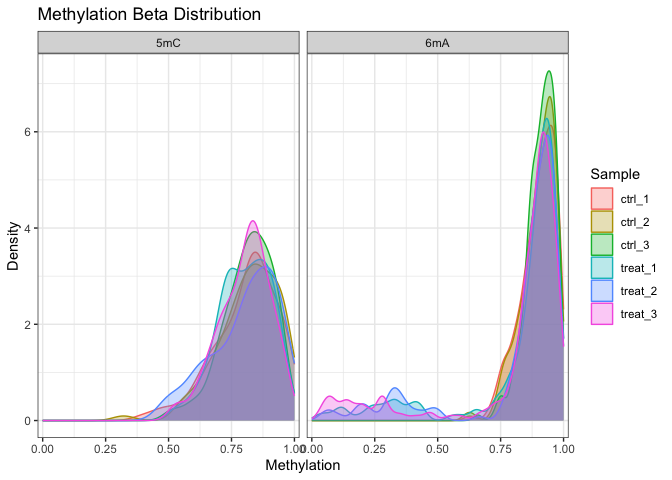

Beta value density per sample, faceted by modification type.

plot_pca() runs PCA on per-sample methylation profiles for sample-level QC:

plot_pca(comma_example_data, color_by = "condition")

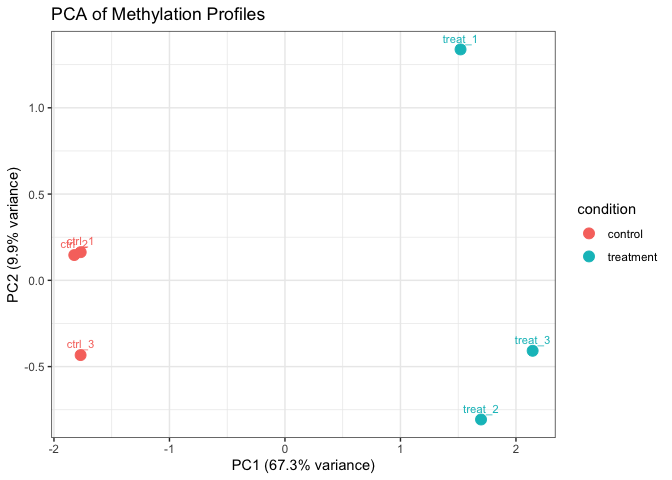

PCA of methylation profiles colored by condition.

Step 2 — Annotate Sites

annotateSites() maps sites to genomic features using GenomicRanges::findOverlaps() — vectorized, no nested loops:

annotated <- annotateSites(comma_example_data, type = "overlap")

# Fraction of sites overlapping at least one annotated feature
si <- siteInfo(annotated)
mean(lengths(si$feature_names) > 0)
#> [1] 0.02333333

Three annotation modes are available: "overlap", "proximity" (nearest feature with signed distance), and "metagene" (normalized position 0–1 within feature bodies).

plot_metagene() shows the average methylation profile across gene bodies:

plot_metagene(comma_example_data, feature = "gene")

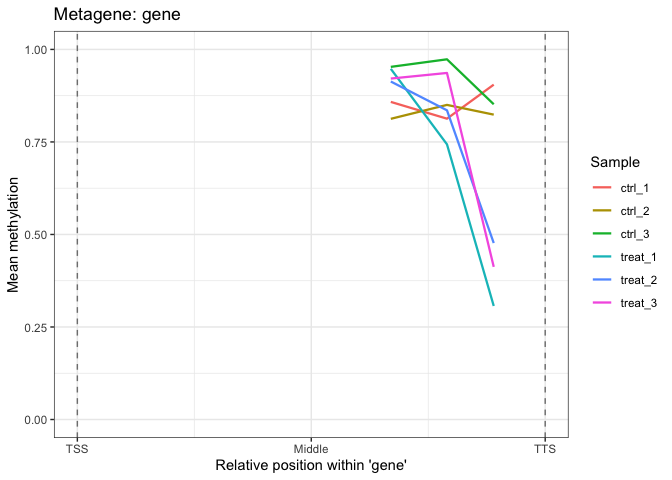

Mean methylation across gene bodies (TSS = 0 to TTS = 1).

Step 3 — Genome Track Visualization

plot_genome_track() produces a genome browser–style scatter plot of methylation along a chromosomal region:

plot_genome_track(comma_example_data, chromosome = "chr_sim",
                  start = 1L, end = 50000L, mod_type = "6mA")

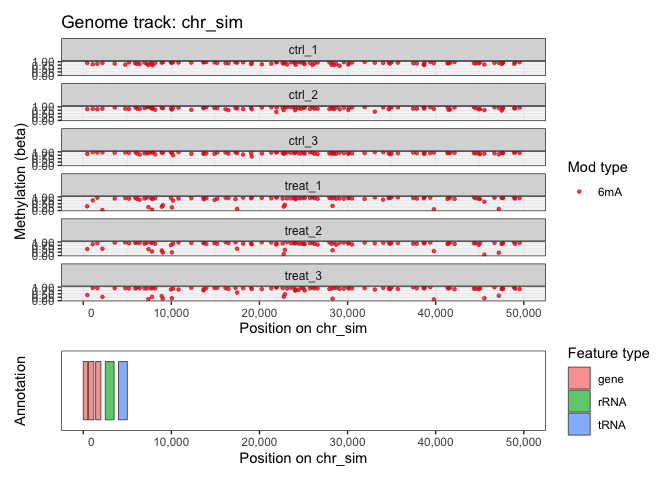

Genome track for the first 50 kb of chr_sim, 6mA sites.

Step 4 — Differential Methylation

diffMethyl() tests each site for differential methylation between conditions. It is modeled on DESeq2’s workflow: pass a commaData object and a design formula, get back the same object with per-site statistics in rowData:

cd_dm <- diffMethyl(comma_example_data, formula = ~ condition,
                    mod_type = "6mA")

Extract results as a tidy data frame and filter to significant sites:

res <- results(cd_dm)
sig <- filterResults(cd_dm, padj = 0.05, delta_beta = 0.2)
cat("Total 6mA sites tested:", nrow(res), "\n")
#> Total 6mA sites tested: 300
cat("Significant sites (padj < 0.05, |Δβ| ≥ 0.2):", nrow(sig), "\n")
#> Significant sites (padj < 0.05, |Δβ| ≥ 0.2): 7

# Top hits
head(res[order(res$dm_padj),
         c("chrom", "position", "dm_delta_beta", "dm_padj")])
#>                       chrom position dm_delta_beta     dm_padj
#> chr_sim:8907:-:6mA  chr_sim     8907    -0.6097199 0.009737468
#> chr_sim:52014:+:6mA chr_sim    52014    -0.7591100 0.009737468
#> chr_sim:69527:+:6mA chr_sim    69527    -0.6702704 0.009737468
#> chr_sim:72824:-:6mA chr_sim    72824    -0.1353157 0.009737468
#> chr_sim:62293:-:6mA chr_sim    62293    -0.6522237 0.012869199
#> chr_sim:9028:-:6mA  chr_sim     9028    -0.6850134 0.018361742

plot_volcano() displays the differential methylation landscape — effect size (delta methylation) versus significance (–log10 padj):

plot_volcano(res)

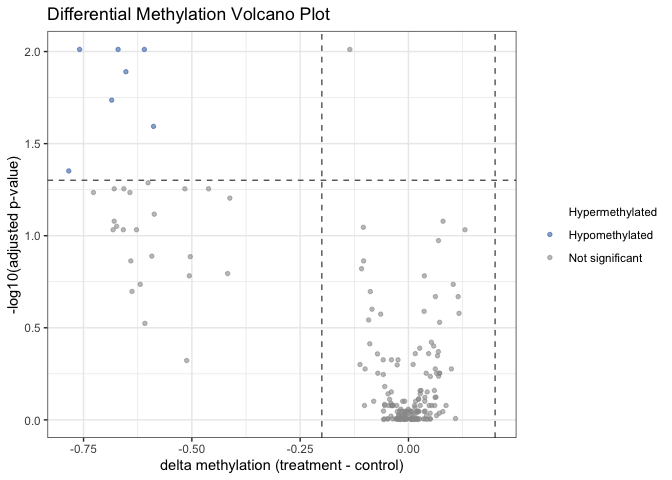

Volcano plot of differential 6mA methylation.

plot_heatmap() shows per-sample beta values for the top differentially methylated sites:

plot_heatmap(res, cd_dm, n_sites = 30L)

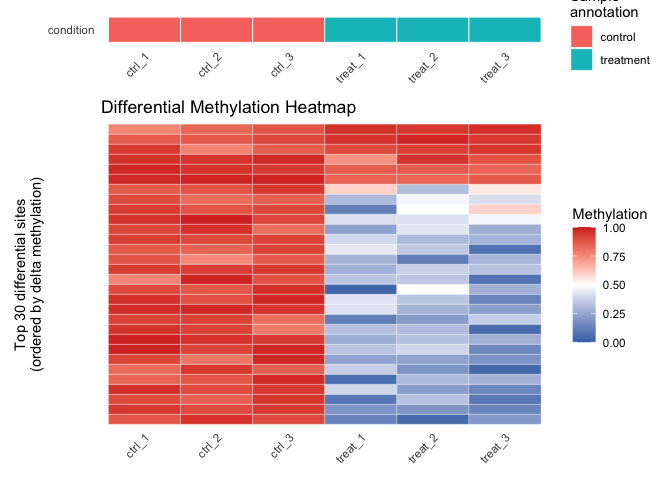

Heatmap of top 30 differentially methylated 6mA sites.

Step 5 — Export to BED

writeBED(cd_dm, file = "results_6mA.bed", sample = "ctrl_1", mod_type = "6mA")

Multi-Modification-Type Support

A single commaData object can hold 6mA, 5mC, and 4mC sites simultaneously. The mod_type argument is available on every analysis function:

# Modification types present in the example data
modTypes(comma_example_data)
#> [1] "5mC" "6mA"

# Subset to a single type
obj_6mA <- subset(comma_example_data, mod_type = "6mA")
obj_6mA
#> class: commaData
#> sites: 200 | samples: 6
#> mod types: 6mA
#> conditions: control, treatment
#> genome: 1 chromosome (100,000 bp total)
#> annotation: 5 features
#> motif sites: none

For a complete joint 6mA + 5mC analysis, see the Multiple Modification Types vignette (vignette("multiple-modification-types", package = "comma")).

Documentation

?comma        # Package overview and five-step workflow
?commaData    # Constructor and commaData class
?diffMethyl   # Differential methylation testing

Two vignettes are included:

Getting Started (vignette("getting-started", package = "comma")) — end-to-end workflow: load → QC → annotate → differential methylation → visualize.
Multiple Modification Types (vignette("multiple-modification-types", package = "comma")) — joint 6mA and 5mC analysis in a single commaData object.

Roadmap

Version	Phase	Status
0.2.0	Data infrastructure — `commaData` S4 class, modkit parser	✅ Complete
0.3.0	Refactored analysis — `annotateSites`, `slidingWindow`, QC utilities	✅ Complete
0.4.0	Differential methylation — `diffMethyl()`, beta-binomial GLM	✅ Complete
0.5.0	Visualization — seven `plot_*()` functions, vignettes, package docs	✅ Complete
1.0.0	Bioconductor submission	⏳ In preparation

Citation

Stone CJ et al. (2022). Genome-wide adenine methylation in Escherichia coli K-12 reveals methylation patterns associated with gene regulation. bioRxiv.
